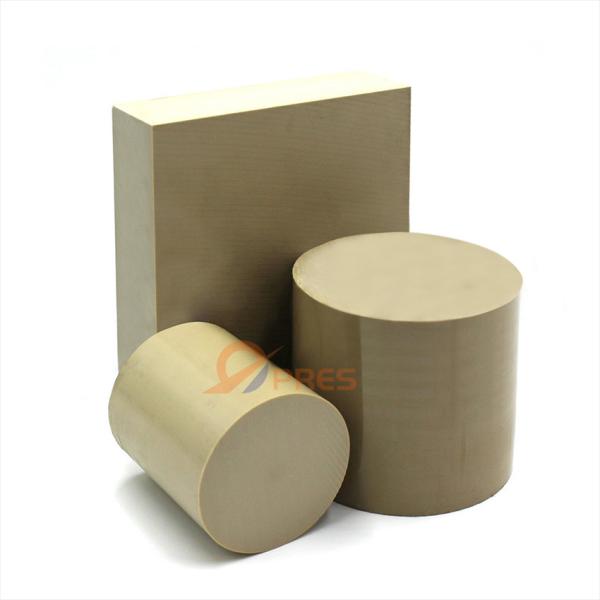

Customized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mm

  • 1
  • 2

Brand Name : PRES

Model Number : G1030

Certification : ROHS REACH

Place of Origin : China

MOQ : 1kg

Price : 60USD-95USD per KG

Payment Terms : D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 250Tones per month

Packaging Details : inner pp cotton，Outer wooden case

Material : PEEK+Glass Fiber

Density : 1.51g/cm3

Tensile Strength : 175MPa

 Elongation at break : 2.7%

Thickness : 1mm-60mm

Width : Customization

Length : 1240mm/customization

Reinforcement : Glass Fiber

Form : Sheet

Color : Natural/Black/customization

Flammability : UL94 V-0

Contact Now

Customized 10mm High Temperature Resistance and High Strength PEEK GF30 Sheet Modified Reinforced Glass Fiber PEEK Plate

Glass Fiber Filled PEEK Advantage:

Compared with unfilled PEEK,this 30% glass fiber reinforced PEEK material exhibits increased mechanical strength and high rigidity.Plus, improved creep strength and dimensional stability are delivered by the 30% glass fiber filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.PEEK GF30 is widely used in the buyer cases, which has a marked compressive strength requirement on the product designing.

PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)

Customized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mmPEEK SHEET SPECIFICATIONCustomized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mm

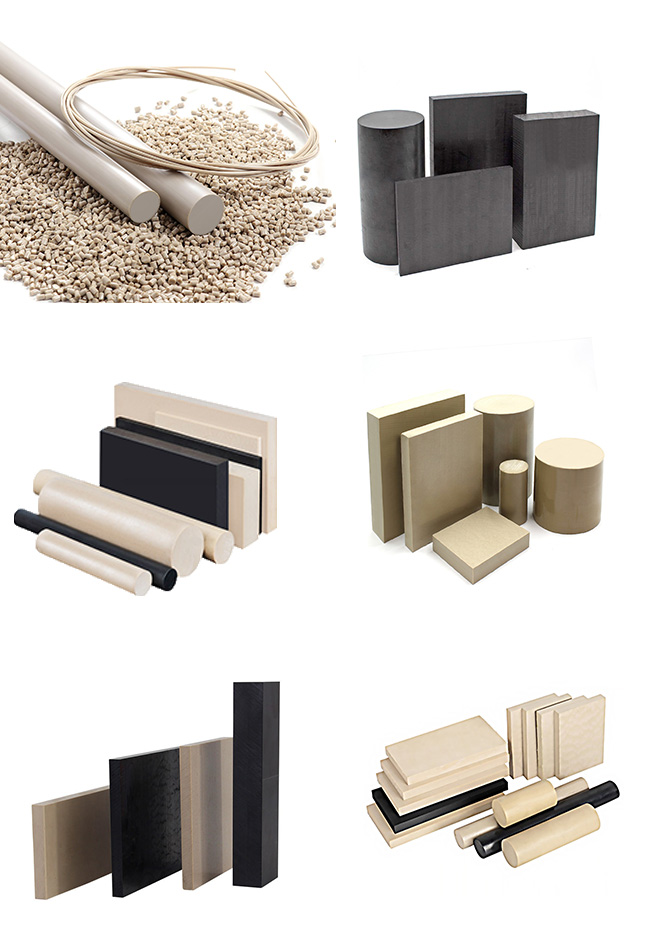

PEEK SHEET&RODS Standard SIZE
Item Thick/Dia(mm) Width/Length(mm) Density (g/cm3) Color
PEEK resine sheet 6-120 620X1240 1.31 Natural, Black
PEEK resine rod 6-100 1000 1.31 Natural, Black
PEEK+GF Sheet 6-100 620x1240 1.51 Natural, Black
PEEK+GF Rod 10-50 1000 1.51 Natural, Black

Images:

Customized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mm

Customized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mmCustomized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mm

Customized Glass Fiber GF30 PEEK Polyetheretherketone Rod Sheet 10mm
